FCN-05

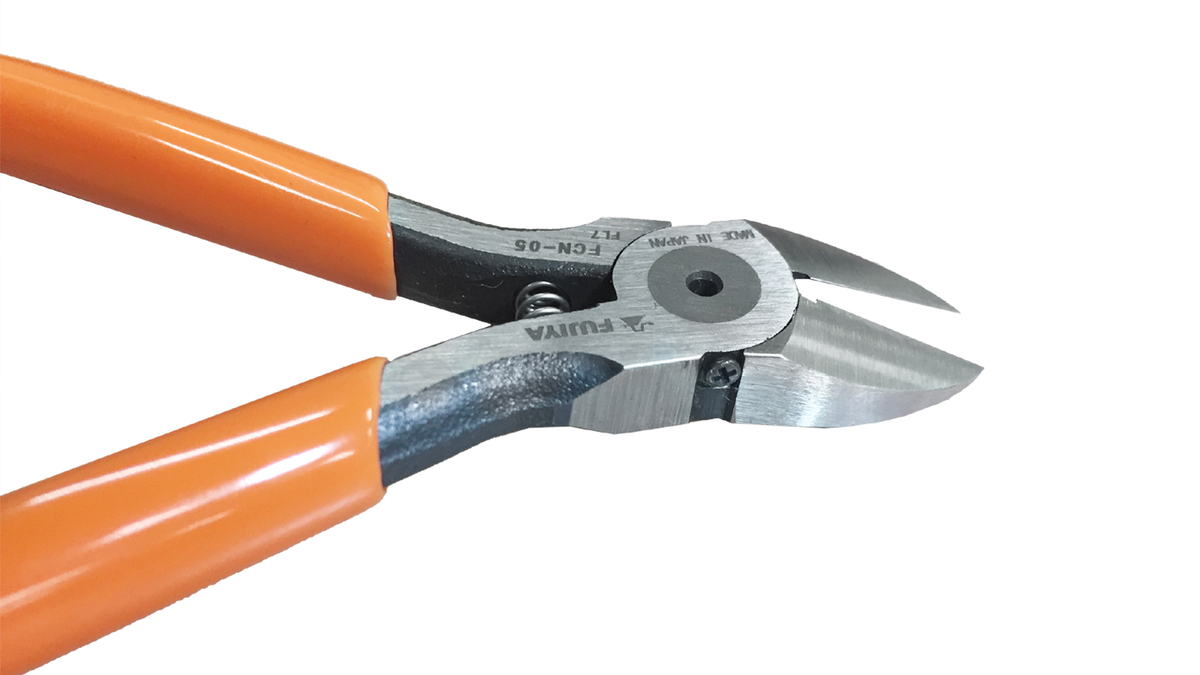

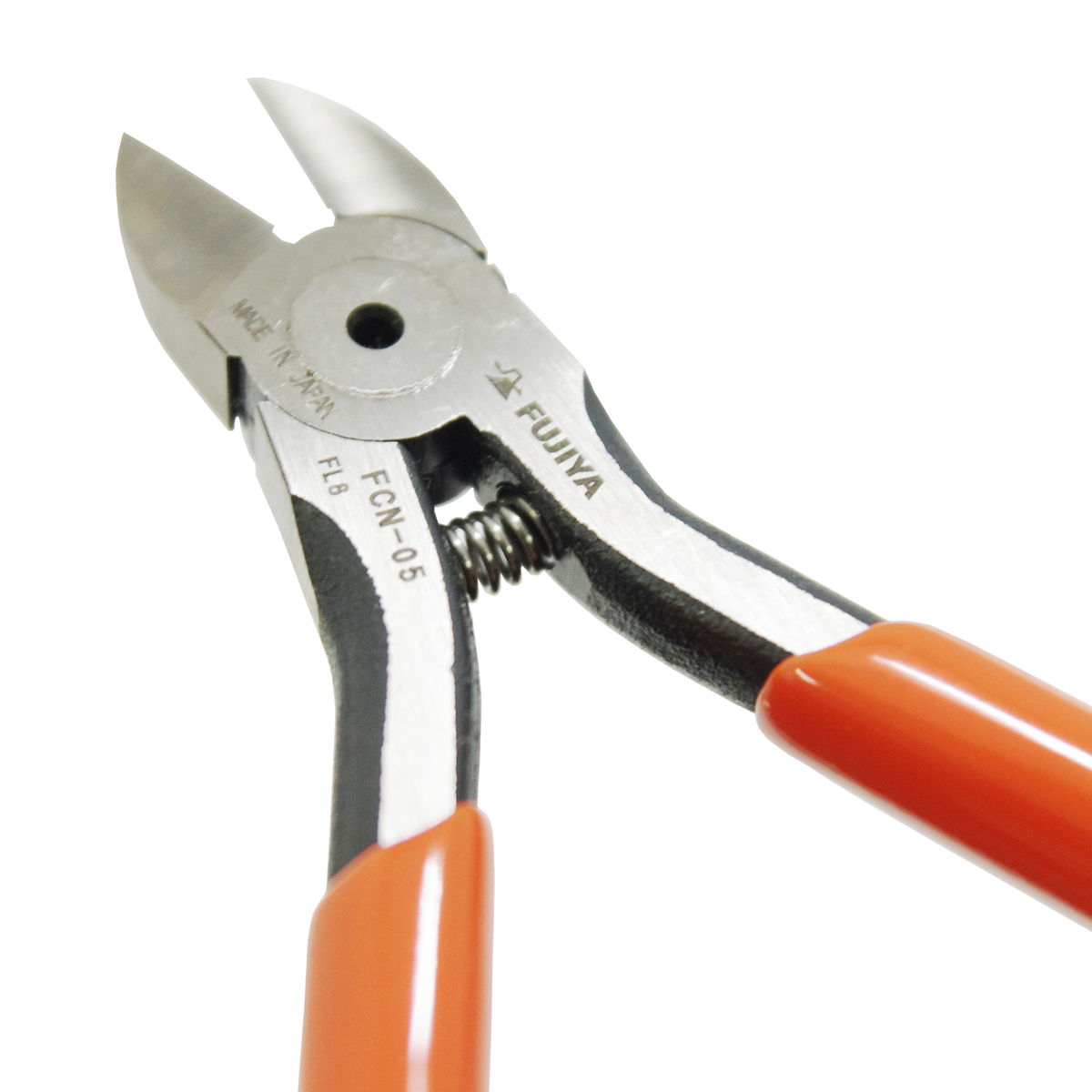

Micro Diagonal Cutting Nippers

  • ROUND BLADES
  • MICRO MIRROR BLADE
  • WITH SPRING
  • ROHS

Comes with " micro mirror blade." The high precision gives these nippers excellent durability.
Small blades make these excellent for working in narrow spaces.

  • SPECIFICATIONS
  • APPLICATIONS
  • MOVIE
Size(mm) 125mm
Weight(g/w) 70g/w
Cuttinng Performance Steel wire Φ1.6mm
Cuttinng Performance Coppre wire Φ0.15-2.0
Cuttinng Performance Twisted wire Φ2.0mm
Package size (H x W x D mm) 170×76×15
Set Include 6
JAN 4952520000000
a 126mm
b 13mm
c 6.8mm
d 49mm
e 15mm
i 22°

Micro Mirror blades:
the leading edge of polishing technology developed by FUJIYA, which achieve very keen blade and beautiful cut cross section.

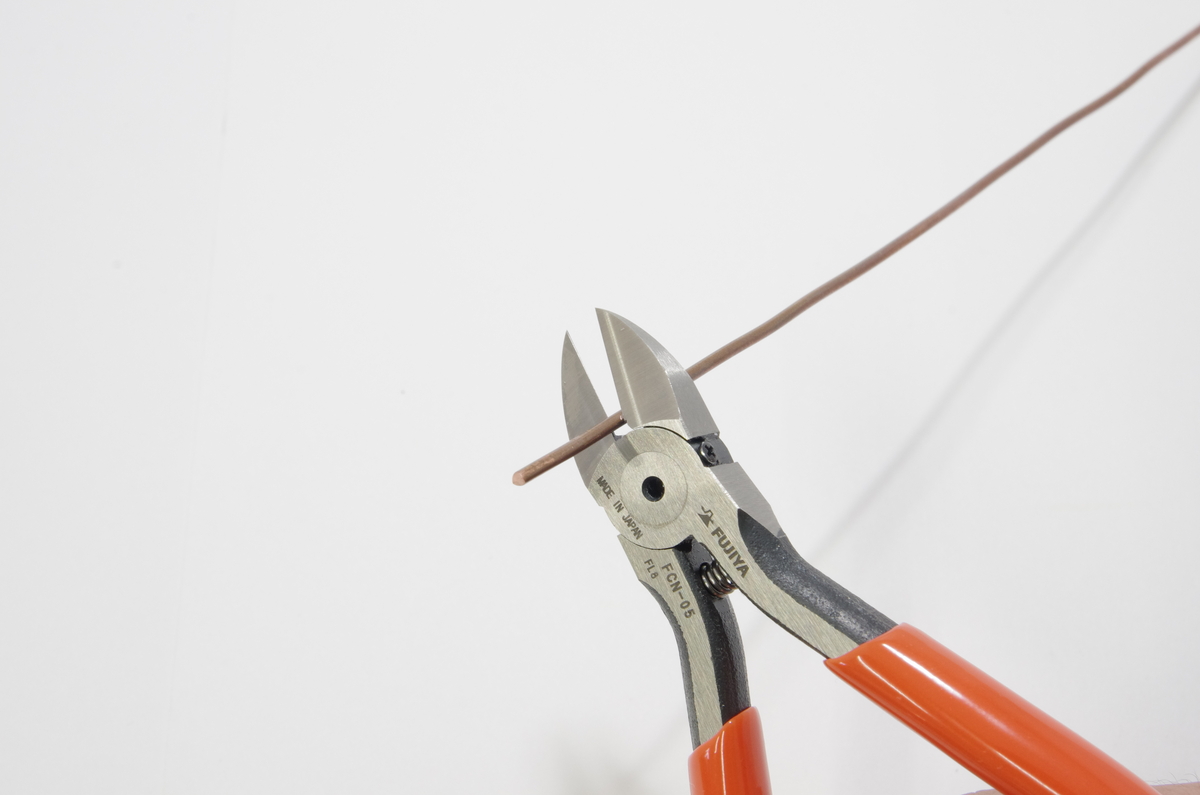

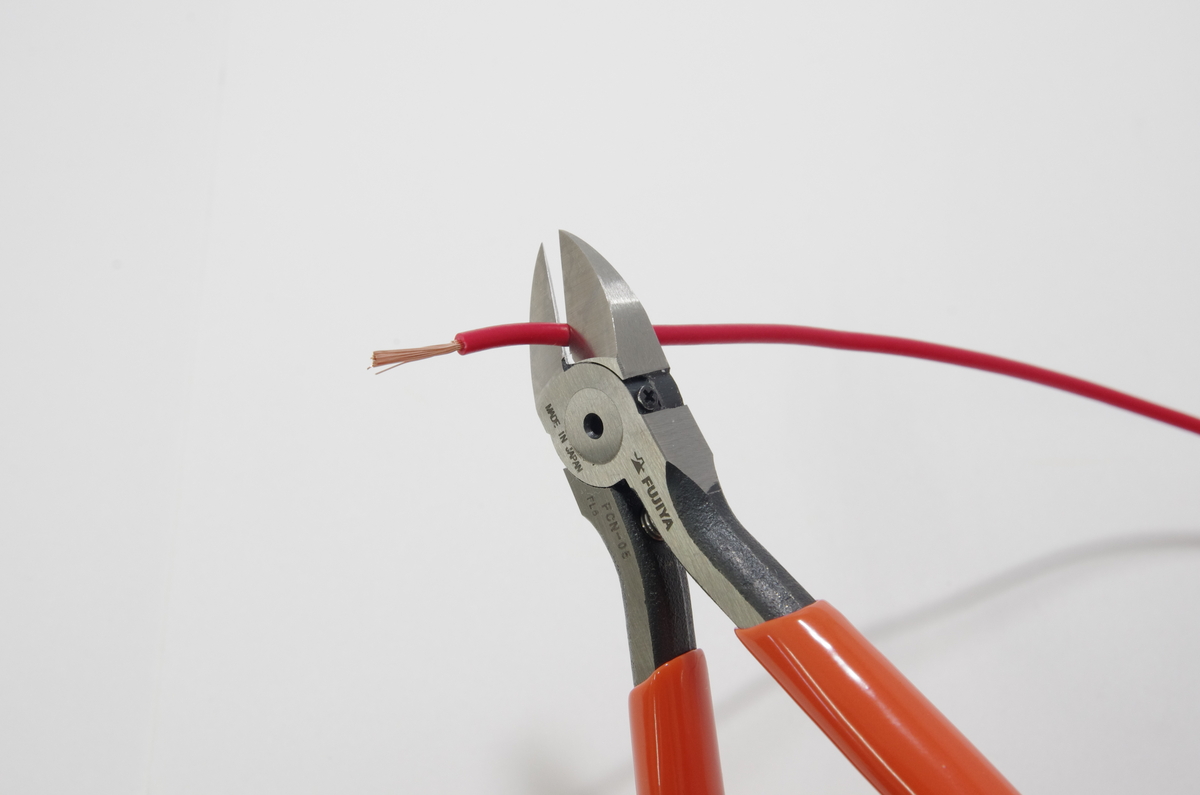

Able to cut from iron wire to copper wire Φ0.15-2.0
.

With a spring that reduces the burden of continuous work.

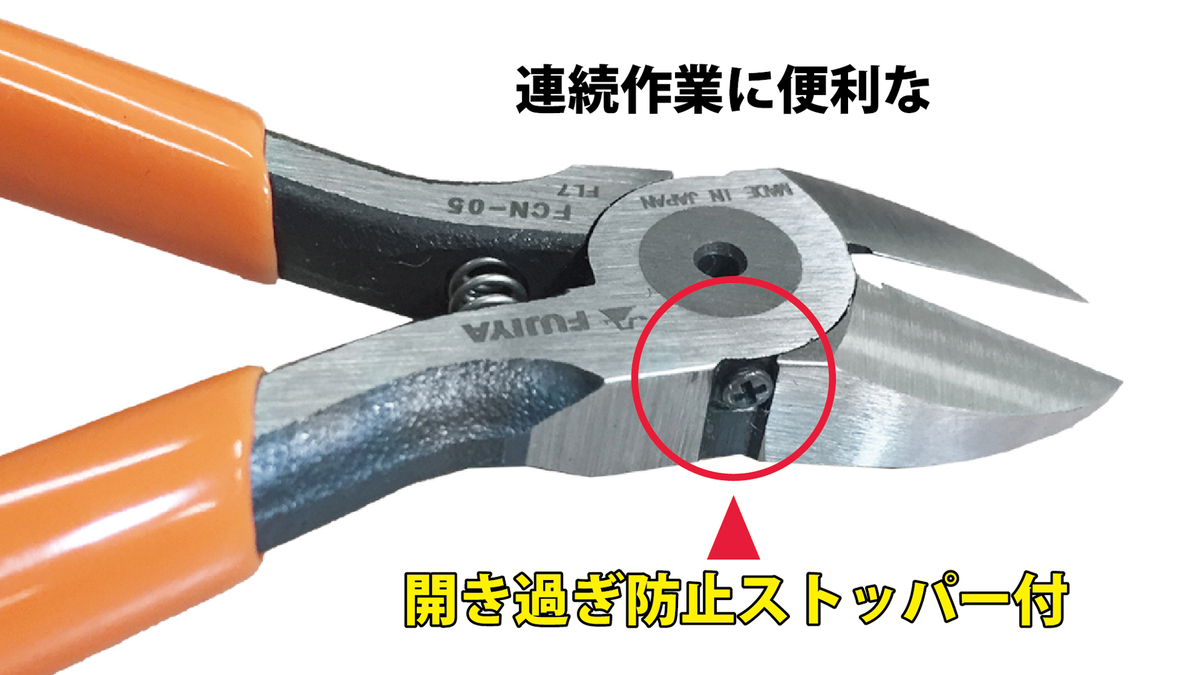

It also comes with a stopper that prevents over-opening, improving work efficiency.
