Blades part are processed by "Micro Mirror Blade", the leading edge of polishing technology developed by Fujiya, which achieve 20% better cutting power than Fujiya standard type.
Grip handle is newly developed soft type handle(Elastomer material) and well fit to the palm which makes works comfortable.

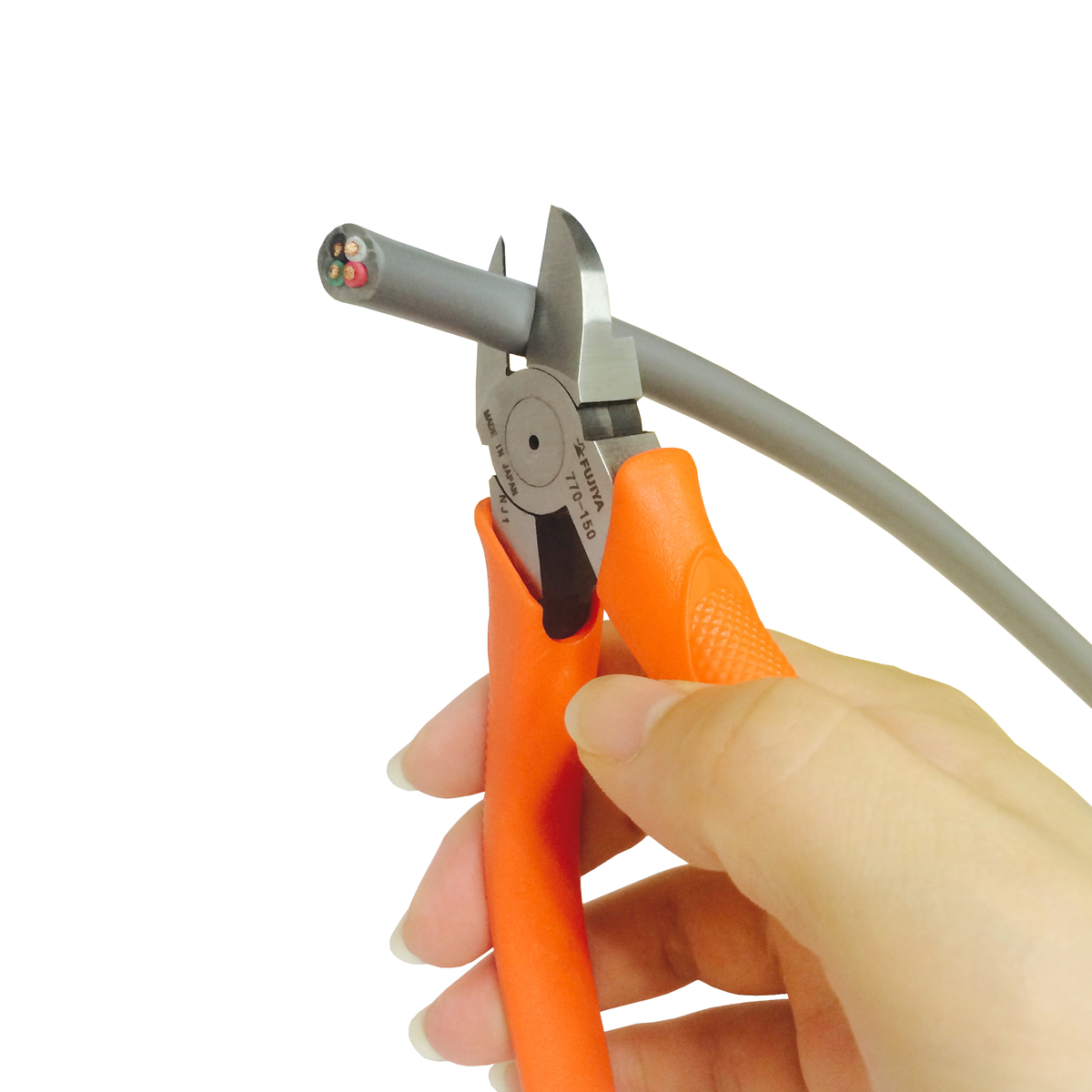

Easy cutting of coaxial cable.
※Blade edge is designed so thin and not to suitable to cut hard wire such as Piano wire, Spring wire etc.
| Size(mm) | 150mm |
|---|---|
| Weight(g/w) | 170g/w |
| Cuttinng Performance Steel wire | Φ2.0mm |
| Cuttinng Performance Coppre wire | Φ3.0 |
| Cuttinng Performance VA/VFF wire | Φ1.6mm×3 core |
| Package size (H x W x D mm) | 200×73×15 |
| Set Include | 6 |
| JAN | 4952520077061 |

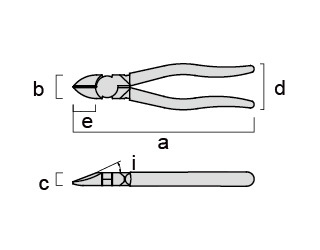

| a | 162mm |
| b | 20mm |
| c | 10.5mm |
| d | 51mm |
| e | 21.5mm |
| i | 22° |

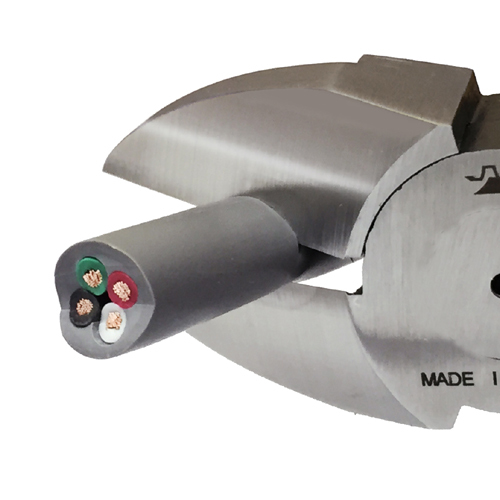

Micro Mirror blades:
the leading edge of polishing technology developed by FUJIYA, which achieve very keen blade and beautiful cut cross section.
Because it is less frictional resistance against the coating resin such as VCTF / VCT wire, it can be cut smoothly.
